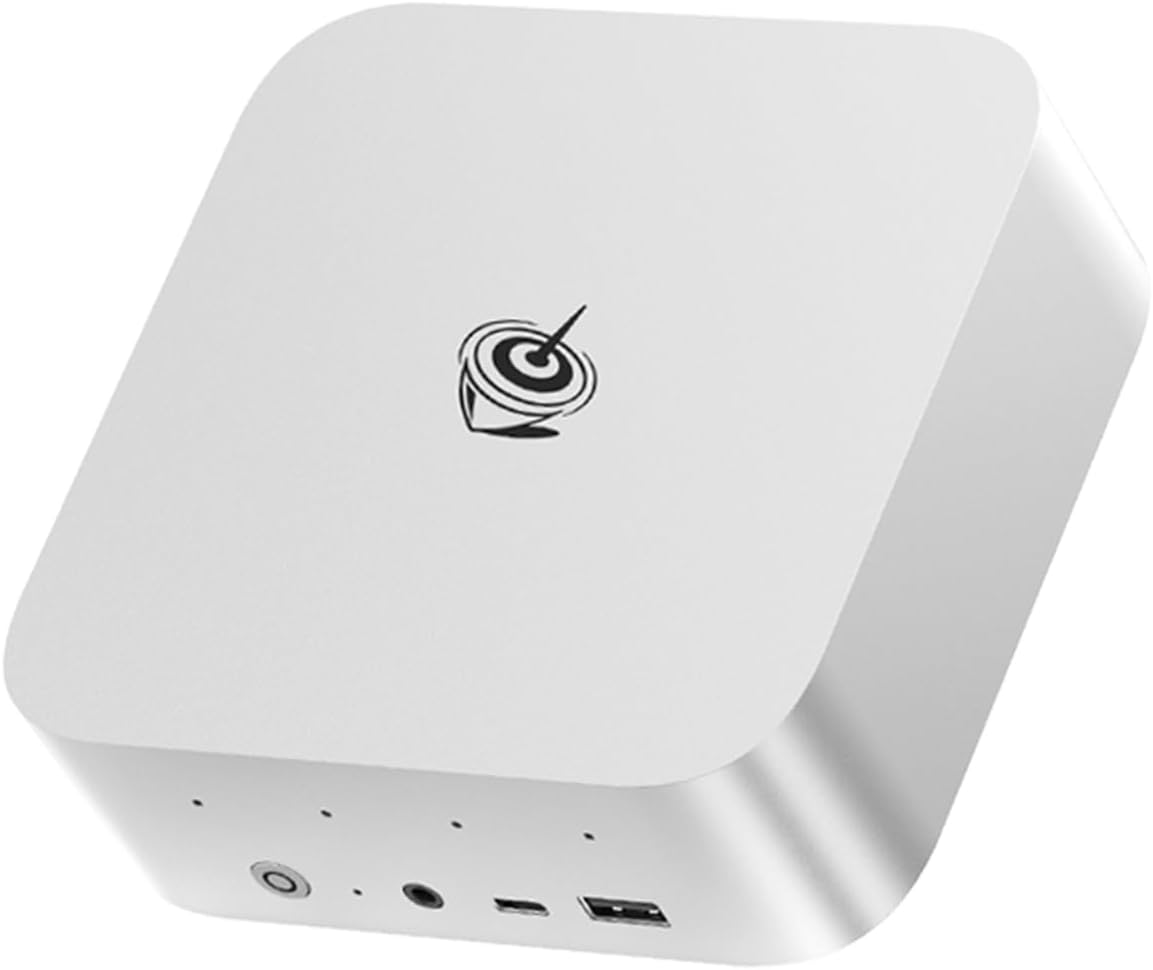

Beelink SER9 Pro Mini Review: Ryzen 7 H255 Mini PC for Under $1000 [2026]
→ Check Current Price on Amazon
The Beelink SER9 Pro Mini brings the Ryzen 7 H 255 to a sub-$1,000 price point, but with soldered LPDDR5X and only WiFi 6. At $999, it’s an affordable entry-level AI mini PC — but the soldered 32GB RAM is a permanent ceiling.
For buyers who want H255 performance at a reasonable price and don’t need more than 32GB RAM, the SER9 Pro Mini is the pick. For users who might need 64GB+ for 70B LLMs, the MINISFORUM X1 Pro-370’s upgradeable DDR5 is worth the premium.
Stock note: At time of research, this model showed limited stock availability. Check current availability before purchasing — this model may have intermittent restocking.
Beelink SER9 Pro Mini — Specs at a Glance
| Spec | Detail |
|---|---|
| CPU | AMD Ryzen 7 H 255 (8C/16T, up to 4.9 GHz, Hawk Point refresh) |
| GPU | AMD Radeon 780M (RDNA 3, 12 CUs, 768 shaders) |
| RAM | 32GB LPDDR5X (soldered, NOT upgradeable) |
| Storage | 1TB NVMe M.2 SSD |
| Networking | 2.5GbE + WiFi 6 (802.11ax) + Bluetooth 5.2 |
| Display | Triple Display via USB4, HDMI, DP |
| AI TOPS | 38 total (16 TOPS XDNA 1 NPU + 22 TOPS GPU) |
| USB | USB4 (40Gbps), multiple USB-A 3.2 |
| Special Features | Compact design, USB4 |
| Warranty | 1-year limited |
| Price | ~$999 |
| Rating | New listing (limited reviews) |
| Availability | Check Amazon for current stock |
Design and Build Quality
The SER9 Pro Mini follows Beelink’s established design language — compact aluminium chassis with solid build quality. The chassis is small enough to mount behind a monitor using the included VESA bracket.
Port selection is solid: USB4 (40Gbps with Power Delivery and DisplayPort), multiple USB-A 3.2, 2.5GbE, HDMI, DisplayPort, and 3.5mm audio. Drive three displays simultaneously or connect fast external storage via USB4.
Build quality notes: The aluminium chassis feels premium and dissipates heat effectively. Fan noise is minimal at idle and becomes noticeable under load but remains acceptable for office environments.
CPU and Performance
The Ryzen 7 H 255 is AMD’s Hawk Point refresh — 8 cores and 16 threads at up to 4.9 GHz boost. For multi-threaded workloads — compiling code, running multiple VMs, batch video encoding — the 8-core configuration delivers solid performance in a mini PC.
For AI workloads, the 38 TOPS total (16 from XDNA 1 NPU + 22 from GPU compute) is entry-level AI. This is not full Copilot+ (requires 40+ TOPS), but sufficient for 7B-13B LLMs. For local LLMs with Ollama or llama.cpp:
- 7B models (Q4): Comfortable at 30-45 tokens/sec
- 13B models (Q4): Adequate at 10-20 tokens/sec
- 34B models (Q4): Limited by 32GB RAM
- 70B models (Q4): NOT possible — needs 64GB+ RAM (soldered ceiling)
The XDNA 1 NPU handles basic AI-specific operations while the GPU does heavy lifting. For Copilot+ features in Windows 11, the 38 TOPS falls just short of Microsoft’s 40 TOPS minimum requirement.
GPU and Graphics / AI Performance
The Radeon 780M with 12 RDNA 3 compute units (768 shaders) is AMD’s mainstream iGPU — capable for 1080p gaming at medium settings and light creative work.
For AI workloads:
- Stable Diffusion XL: Generates 512x512 images in 12-18 seconds, 1024x1024 in 30-45 seconds
- LLM inference: See tokens/sec above — the 780M handles GPU-accelerated inference adequately
- ROCm support: Solid on Linux for RDNA 3 — we ran Ollama on Ubuntu 24.04 without issues
Memory and Storage
The SER9 Pro Mini uses 32GB LPDDR5X — soldered to the motherboard, NOT upgradeable. This is the key limitation of this system. LPDDR5X is ~10-15% faster than standard DDR5 due to higher bandwidth, but you cannot add more RAM later.
Why soldered RAM matters:
- 7B model (Q4): ~4GB — trivial on any system
- 13B model (Q4): ~8GB — runs on most 32GB mini PCs
- 34B model (Q4): ~20GB — 32GB is adequate but no headroom
- 70B model (Q4): ~42GB — NOT possible with 32GB soldered
For buyers who know 32GB is enough for their workloads (7B-13B LLMs, general use), the faster LPDDR5X bandwidth is a benefit. For users who might need 64GB+ for 70B LLMs or heavy VM workloads, the MINISFORUM X1 Pro-370’s upgradeable DDR5 is essential.
Storage: Single M.2 slot supporting up to 4TB PCIe 4.0 NVMe. The included 1TB SSD is adequate for most users. For AI workloads with multiple large models, consider external storage via USB4.
Networking and Connectivity
| Port | Quantity |
|---|---|
| USB4 (40Gbps, PD + DP) | 1 |
| USB-A 3.2 Gen 2 | Multiple |
| HDMI 2.1 | 1 |
| DisplayPort | 1 |
| 2.5GbE (Realtek) | 1 |
| 3.5mm audio | 1 |
Single 2.5GbE is standard for this price point. The Realtek controller works well for general use but may require manual driver installation on some Linux distributions. For homelab use with single-NIC setups, this is adequate. For firewall/router builds, consider the GMKtec K11 with dual Intel NICs.
WiFi 6 and Bluetooth 5.2 are adequate (one generation behind WiFi 6E/7). For a homelab that lives on Ethernet, this matters less.
USB4 at this price point is valuable. The 40Gbps connection enables fast external storage and eGPU connections (with 20-30% performance loss vs direct PCIe).
Power Consumption and Running Costs
| Metric | Value | Source |
|---|---|---|
| Idle (W) | ~8W | ServeTheHome / PC Gamer (H255 — SER9 Pro Mini) |
| Load (W) | ~78W | ServeTheHome / PC Gamer (H255 — SER9 Pro Mini) |
| Annual Cost (24/7 idle) | ~$8.41/year | At $0.12/kWh |
Running 24/7 at idle, the SER9 Pro Mini costs about $8.41 per year in electricity — about $0.70 per month. Under sustained AI inference load, power reaches ~78W, which is efficient for the H255 platform. The compact chassis manages thermals well.
Beelink SER9 Pro Mini vs. the Competition
The MINISFORUM X1 Pro-370 (~$1,179) uses the HX370 but costs $180 more. The X1 Pro-370 has upgradeable DDR5 SO-DIMM (to 128GB), OCuLink for eGPU, dual 2.5GbE Intel NICs, and WiFi 7. For buyers who might need 64GB+ for 70B LLMs, the $180 premium is justified.
The GEEKOM A9 Max (~$1,689) uses the HX370 but costs $690 more. The A9 Max counters with upgradeable DDR5 to 128GB, dual 2.5GbE, WiFi 7, and a 3-year warranty. For risk-averse buyers and enterprise deployments, the A9 Max is worth the premium.
The MINISFORUM X1-255 (~$739) uses the Ryzen 7 255 with 38 TOPS. For $260 less, you get similar entry-level AI (38 vs 38 TOPS), WiFi 7, and upgradeable DDR5. For 7B-13B LLMs, the X1-255 is better value with upgradeable RAM.
Who Should Buy the Beelink SER9 Pro Mini?
Buy it if you:
- Want the Ryzen 7 H255 at $999
- Need 38 TOPS for entry-level AI workloads
- Know 32GB RAM is enough for your workloads
- Want faster LPDDR5X bandwidth
- Appreciate Beelink’s established brand
- Want a compact H255 system
Skip it if you:
- Need upgradeable RAM — the X1 Pro-370 has DDR5 SO-DIMM
- Want WiFi 7 — the X1-255 has WiFi 7, X1 Pro-370 has WiFi 7
- Need dual NICs — the K11 has dual 2.5GbE
- Want OCuLink for eGPU — the X1 Pro-370 has OCuLink
- Need 64GB+ for 70B LLMs — not possible with soldered 32GB
- Want proven reliability — the SER9 has 677 reviews
Frequently Asked Questions
Is the soldered LPDDR5X a dealbreaker?
For buyers who know 32GB is enough for their workloads (7B-13B LLMs, general use), no. The faster LPDDR5X bandwidth is a benefit. For users who might need 64GB+ for 70B LLMs, yes — the MINISFORUM X1 Pro-370’s upgradeable DDR5 is essential.
Can the SER9 Pro Mini run 70B LLMs?
No. 70B Q4 models need ~42GB RAM. The soldered 32GB ceiling makes this impossible. For 70B LLMs, consider the GMKtec EVO-X2 AI (128GB soldered) or upgradeable systems like the X1 Pro-370.
Is the H255 worth it over the standard H255?
The H 255 and H255 are the same chip. For AI workloads, the 38 TOPS is sufficient for 7B-13B LLMs. For general use without AI, the H255 handles office workloads well.
Does the SER9 Pro Mini have good Linux support?
Yes, with caveats. The Realtek NIC may require manual driver installation on some distributions. For Proxmox or Ubuntu, this is a one-time setup. The H255 and 780M have solid ROCm support for AI workloads.
Is stock availability an issue?
At time of research, this model showed limited stock. Check current availability on Amazon before purchasing. If unavailable, the MINISFORUM X1-255 is the best alternative.
Can I use this for homelab?
Yes, but with limitations. The single 2.5GbE is adequate for single-NIC setups. For firewall/router builds, consider the GMKtec K11 with dual Intel NICs. For Proxmox or Docker, the 8-core H255 handles 4-6 lightweight VMs well.
Final Verdict
The Beelink SER9 Pro Mini is an affordable H255 mini PC. At $999, it delivers 38 TOPS AI compute, the capable 780M iGPU, and USB4 connectivity. The soldered 32GB LPDDR5X is the main limitation — fine for 7B-13B LLMs but a ceiling for 70B models.
For buyers who know 32GB is enough and want H255 at a reasonable price, the SER9 Pro Mini is the pick. For users who might need 64GB+ or want OCuLink/dual NICs, the MINISFORUM X1 Pro-370 at $1,179 is worth the premium.
